Stage 4 System, 2" Lift - Sprinter 2WD (2019-2023 2500)


SHOCK TUNE: LIGHT (UNDER 7500 LBS)
Price:
Sale price$3,881.00 CAD

Description

The Stage 4 kit is optimized for all owners who want to combine the improved stability and better ride of Van Compass shock upgrades with the added clearance and more aggressive stance of the Striker lift kit. Great for adventure vans that need new shocks to replace high mileage units.

The bolt-on Striker Sprinter 2.0” suspension lift system provides clearance for larger tires and offers additional ground clearance under the van. Additional traction and ground clearance helps to avoid obstacles on the trail to your remote campsite. The Striker system retains the stock vehicle suspension geometry, payload rating and ride quality. All of the suspension lift system components are constructed of high quality materials in the USA and are powder coated for durability and corrosion resistance.

The front Sumo Spring replaces the hard factory bump stop. It contacts the control arm at ride height to increase the front suspension spring rate, while still compressing to the height of the factory bump stop. Suspension travel is not reduced. The additional spring rate reduces sway, improves control in high winds and comfort while the suspension cycles. The custom tuned Falcon shocks smooth out the harshness experienced on washboard roads and sharp, abrupt impacts. The bounce experienced over large bumps is reduced and the side to side sway over uneven surfaces is minimized.

Van Compass specs each set of Falcon shocks they sell to your van's weight, please be sure to weigh your van to order the correct shock damping. Vans that are near the gross vehicle weight rating (GVWR) may want to add additional rear suspension parts to reduce rear suspension sag and improve stability.

Stage 4 System Benefits:

  • Aggressive stance allows larger tires to smooth out terrain
  • Reduce the back and forth sway over obstacles
  • Enhances cornering stability
  • Control large and small bumps more efficiently than factory shocks and bump stops
  • Reduces cross wind sway
  • The system is 100% bolt on

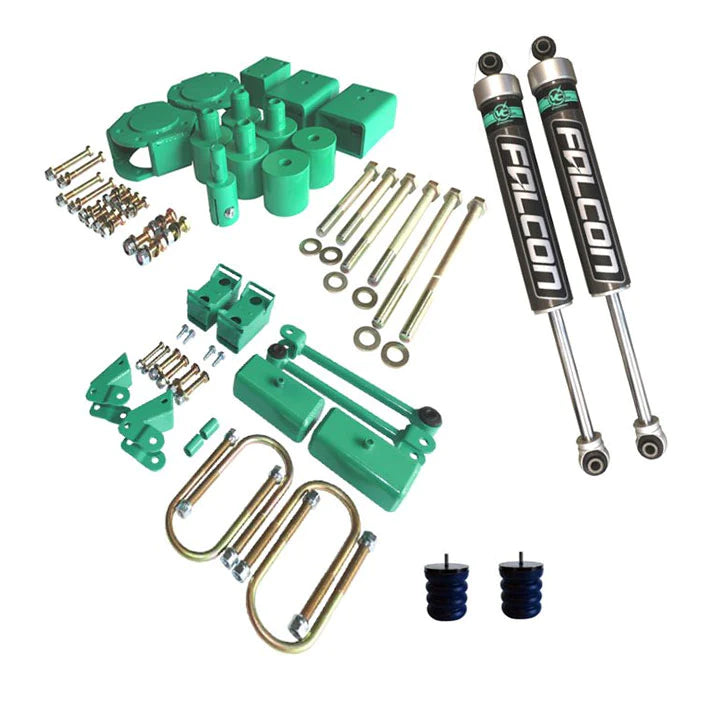

Included Components:

  • Striker 2" Lift Kit
  • Front Falcon Bump Buddies Jounce Bumpers (pair)
  • Falcon 2.1 mono tube shocks
VS30 2500 and 3500 Front Lift Installation Instructions
VS30 2500 Rear Lift Installation Instructions
Sprinter 2WD Front Falcon Bump Buddies installation Instructions
Falcon 2.1 Monotube Rear Shock Installation Instructions

Recommended Shop Labor Time: 16 Hours

Stage Guide: 2WD 2500


Lead Time: Current Lead Time is 6-8 Weeks

Contact gear@nirvanaoutfitters.com for Installation quote at Nirvana HQ in Salmon Arm, BC

We have partner shops to install in Calgary, Canmore & Vancouver
