Owl Ladder Tire Carrier VS30 (2019-Present)

Owl Ladder Tire Carrier VS30 (2019-Present)

Regular price $2,950.00 Sale

There are two types of hinges on the new 2019+ Sprinter, 180˚ and 270˚. Only the 180˚ hinges have holes to mount our carriers from the factory. If you have 270˚ hinges, you will need to select 180° hinges from the drop-down menu below.
  • Fits Sprinter VS30 (2019 to Present)
  • Does not interfere with Parking Assist sensors on most vans

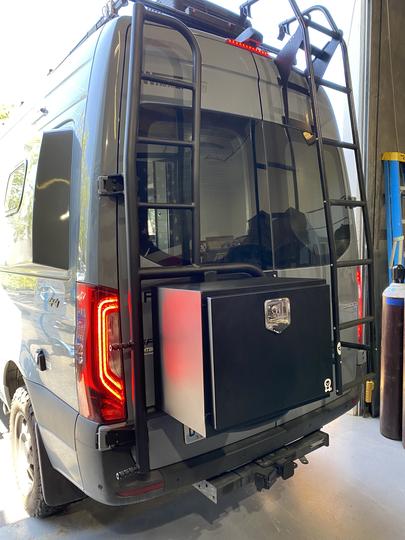

  • Comes ready for a tire or a box (there are box mounting tabs welded to the tire hoop for a flexible setup).
  • All Tig Welded Aluminum
  • Requires 180˚ hinges (See hinge info below) selecting 270˚ hinges below will add to your order the Factory Mercedes Benz Hinge Replacement kit.
  • Lightweight (25lbs)
  • Additional footpegs on side tube (see images)
  • Spin-on tire holder with locking option
  • Adjust for different wheel/tire sizes (over 33" could require trimming of MB badge)
  • Powder Coated Black
  • Installs in 15-20 minutes.
  • Opens with the door (nothing to swing out of the way or bumpers to buy)
  • Compatible with vans with rear windshield wipers
  • No need to relocate the license plate
  • No need to remove or swap out the Mercedes badge
  • Product requires drilling a single hole in the door. Template included.

Works for 2500 & 3500. If you have a 3500, you need an extra part, please state that you have a 3500 in the order notes when ordering so we can make sure to add the extra plate.

Due to the popularity of our Ladder +Tire Carrier, lead times are now roughly 4 weeks for shipment




What Type Of Hinges Do I Have?

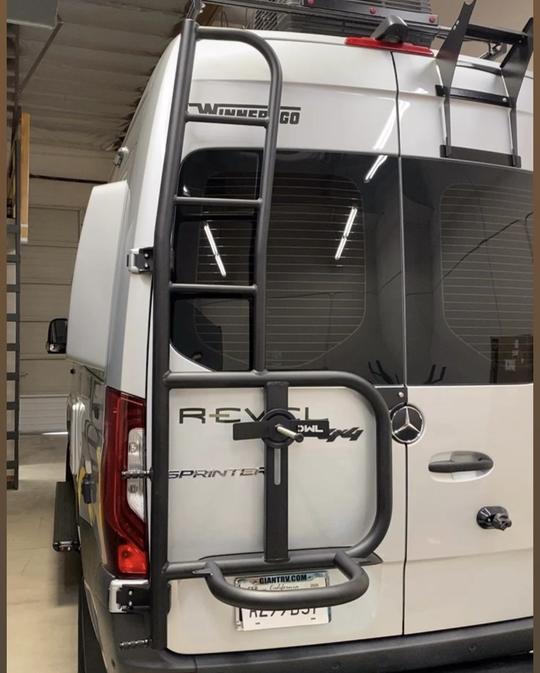

There are two types of hinges that come on the VS30 MB Sprinter (2019+) vans, 180˚ and 270˚. Owl carriers require the 180˚ hinges or a set of our modified 270˚ hinges (sold separately). All Winnebago REVELs have 180˚ hinges. To figure out what type of hinges you have there are a few easy options:

Look at the below image. If you have holes in your hinges then you have the 180˚ hinges (top in the image).

If your doors open all the way and fold flat along the side of the van you have the 270˚ hinges.



Owl Quality:

The Ladder + Tire carrier constructed of mandrel bent 2” aluminum tube, all meticulously TIG welded together by Owl’s Master welders. The Ladder + Tire Carrier is one of the most time-consuming products we build with the main structure consisting of over 20’ of bent tubing and 10+ welds.

Aluminum is ideal for its lightweight and anti-corrosive properties. However, for strength and durability, steel is king. This is why Owl combines a main structure of TIG welded aluminum with a bottom support hoop made of MIG welded steel. The result is a super-strong, yet lightweight solution that will stand up to years of off-road abuse.

 Price in CAD, FOB BC

we will do our best to group orders together to save on shipping charges.  We do not mark up shipping charges.

($200 US shipping from California to Canada has been added to the price)

Images from owlvans.com
