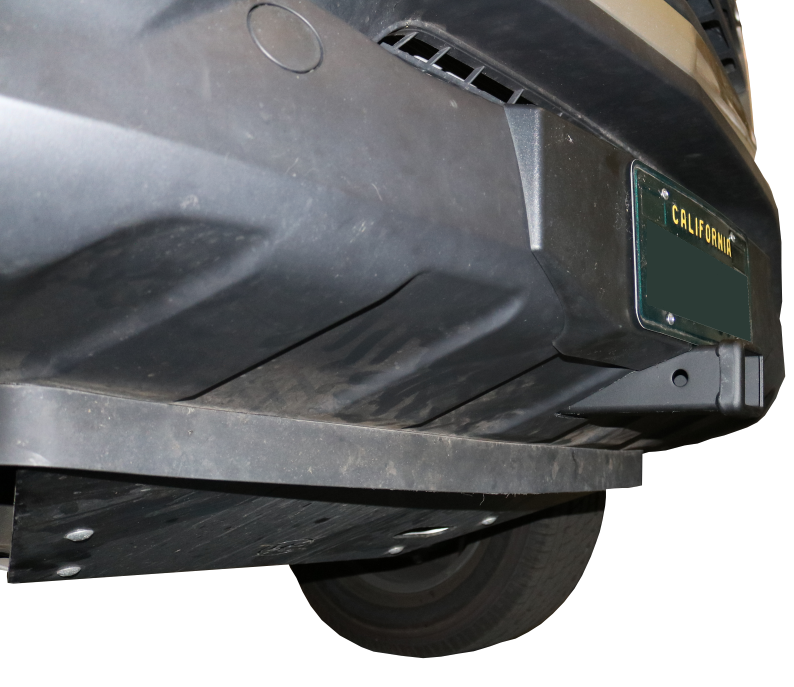

Add function to the front of your Sprinter with the Van Compass front receiver hitch. Designed to hold items like bike/motorcycle racks or mount a winch on a receiver tube for vehicle recovery. Constructed from 3/16" steel plate and 1/4" square tube. Powder coated black for corrosion resistance. The hitch replaces and replicates the stock front bumper hidden under the plastic bumper. It protects the DEF tank like the factory bumper. Bolt on installation with no drilling required. Compatible will lane departure warning module and factory parking sensors, but front sensors will need to be turned off when a rack is used.
Static Load Capacity: 400 lbs
Product weight: 52 lbs
Product weight: 52lbs
* Not compatible with 4 cylinder model Sprinters - Gas or Diesel
** Not Compatible with vans optioned with the HD Rear A/C, auxiliary cooling fans interfere
*** WARN ZEON 12 Platinum winch will work, but plug for wireless remote will contact A/C condenser. We recommend the WARN VR series winch if a wireless remote is desired.
