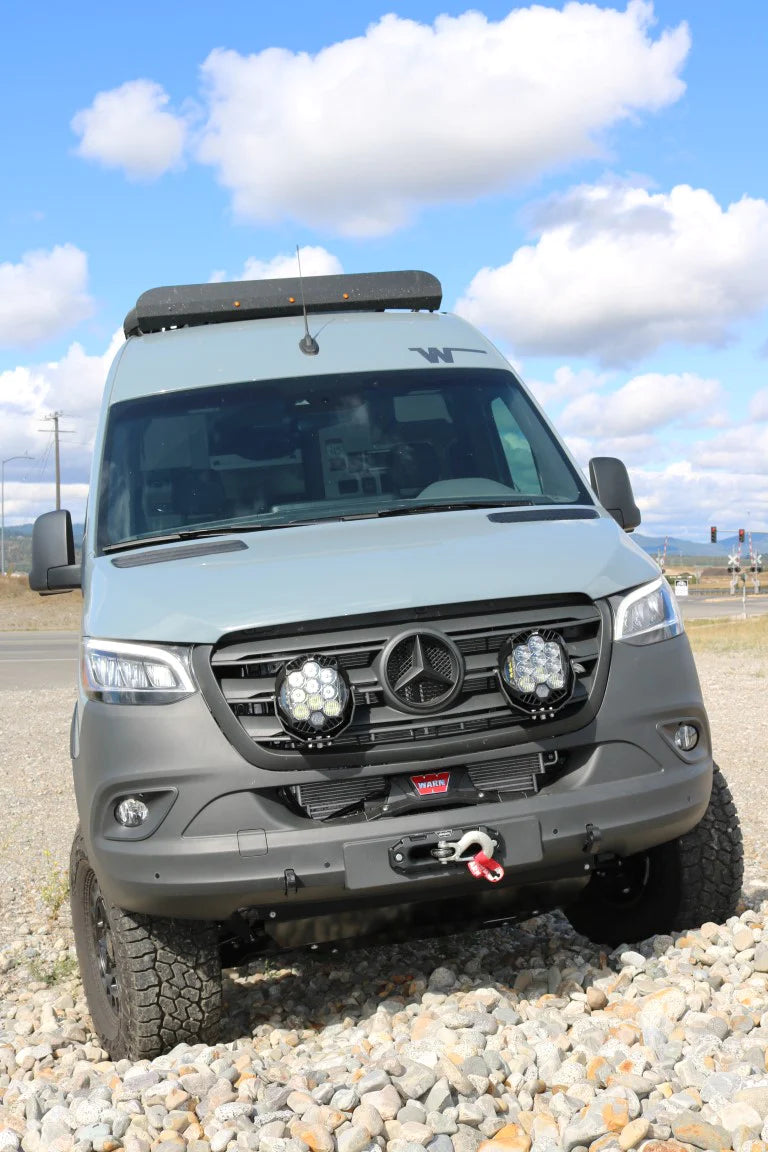

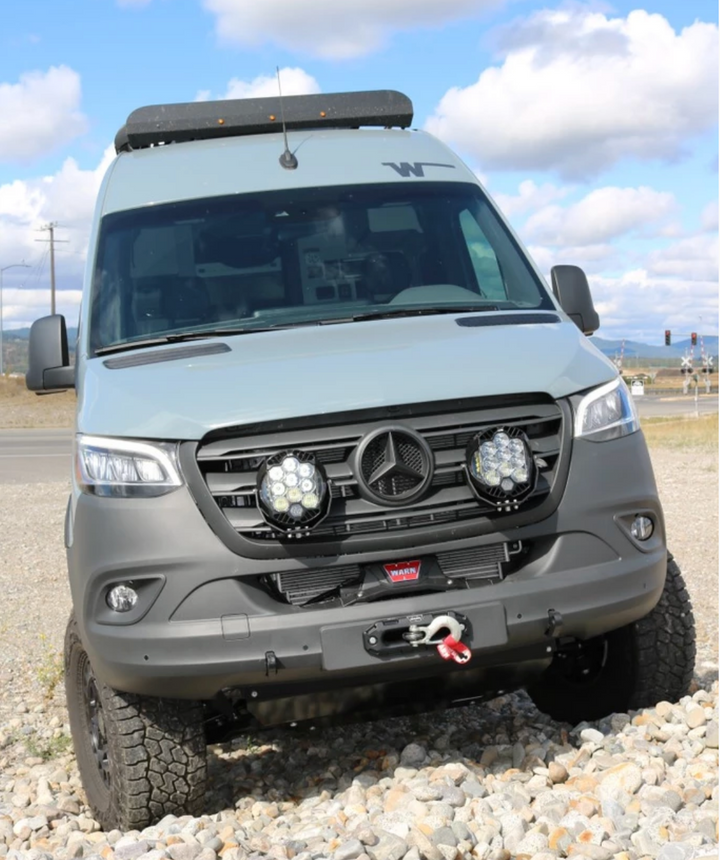

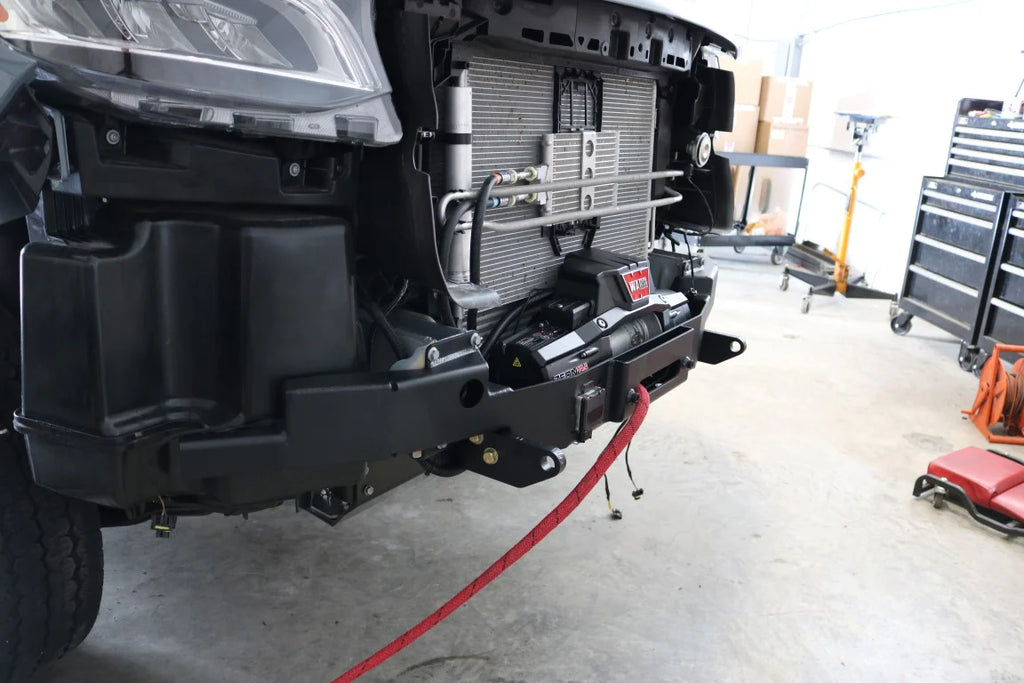

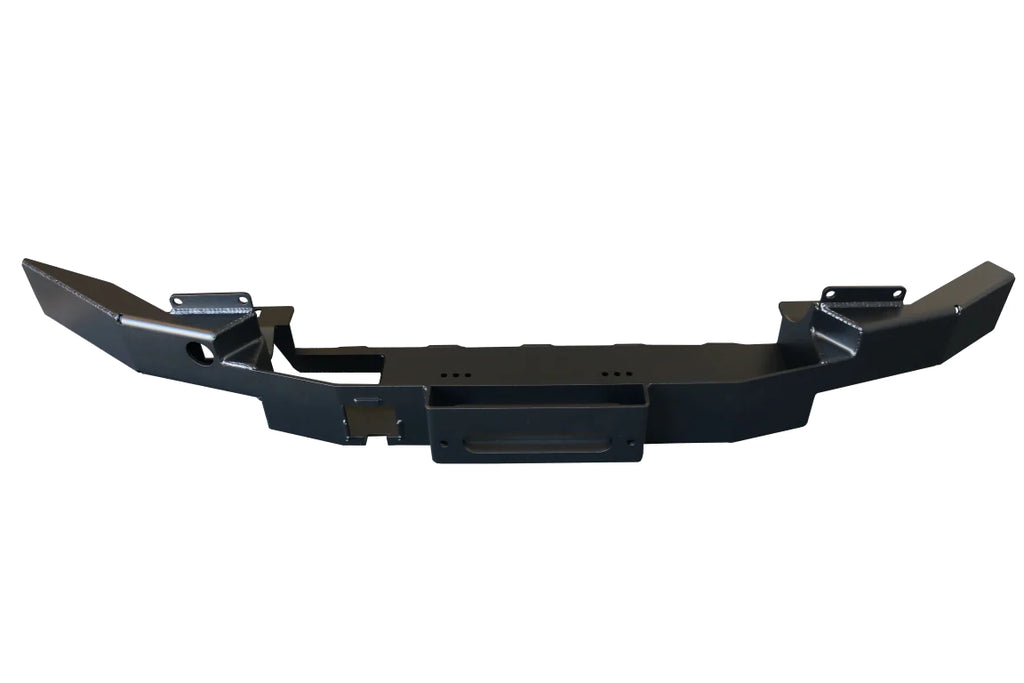

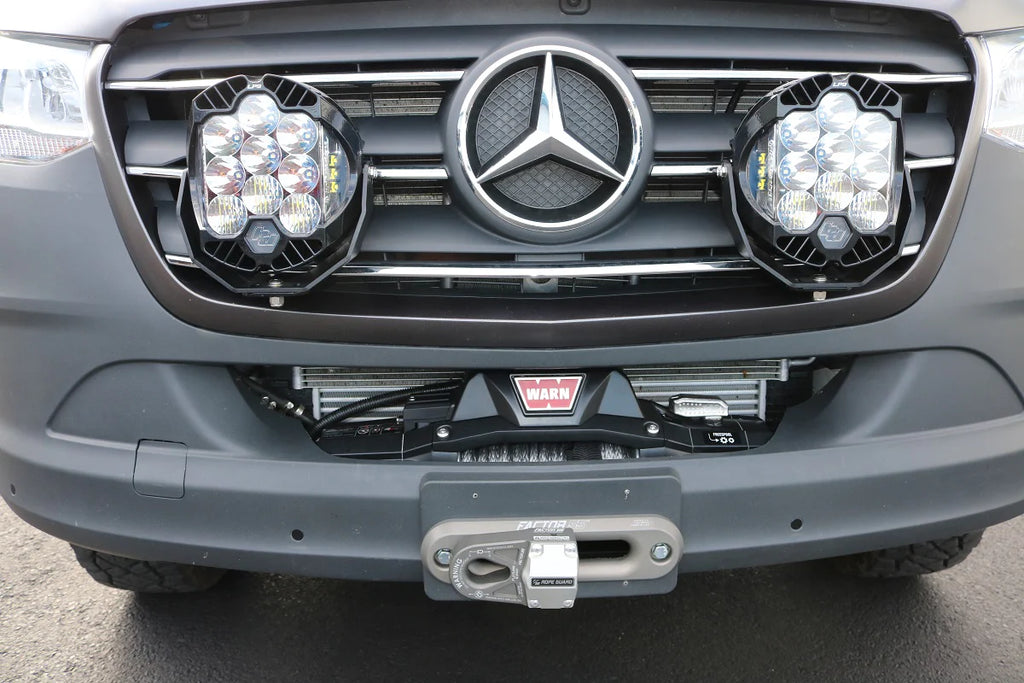

Venture onto dirt roads knowing you have a back up plan if you get stuck or a trail obstacle ahead of you is just a bit beyond your van's capability. Our winch mounting system completely replaces the factory bumper under the plastic cover. We include two front 3/4" thick recovery points and a 2" front receiver hitch attachment. You can choose to run all three of the bolt on accessories or any combination. The optional hitch is great for bicycle racks, as a recovery point and campground utility. Constructed from 3/16" steel plate and 1/4" square tube. Powder coated black with a zinc primer for maximum corrosion resistance. This front winch mount is designed around the Warn Zeon series of winches. Many other winches are compatible with this kit, but please reference the Warn Zeon 12 winch for the maximum winch size. The front hitch should only be used on vans without collision assist / brake sensors, as carrying gear can cause sensor warnings.
Hitch Receiver Static Load Capacity: 300 lbs
Product weight: 52lbs
* Not compatible with 4 cylinder model Sprinters - Gas or Diesel
** Not Compatible with vans optioned with the HD Rear A/C, auxiliary cooling fans interfere
*** WARN ZEON 12 Platinum winch will work, but plug for wireless remote will contact A/C condenser. We recommend the WARN VR series winch if a wireless remote is desired.
CONTACT US FOR AN INSTALL QUOTE AT NIRVANA HQ
BC,AB $75 CAD QB,ON,SK,MB,NB,NS,NL,YT,NT,NU $110 CAD
