Description
**Please email gear@nirvanaoutfitters.com your requests and we will do our best to fulfil your order by the end of October.**
There is no comparison. The smallest and lightest 4.1kWh of battery power you can get and it is built in Canada. Complete customization and bulk/dealer pricing available so please contact us! Our Micro 12V 320Ah battery uses a smarter BTBMS which lets you know what’s going on at all times as well as controls the automatic built-in heating. We use LiFePO4 chemistry which is some of the longest lasting and safest lithium chemistries. You can always monitor real-time usage from the optional RB Smart LCD or from the Phone/tablet app.
Capacity
Using four of our high capacity 3.2V 320Ah prismatic cells translates into a more reliable battery with less parts and less issues. Our cells are designed to use full depth of discharge giving maximum capacity when required. You always have the option (through Bluetooth App or from factory) to change the charging and discharging parameters to a 20%-90% cycle to extend the lifetime of the battery further. Compared to lead acid, lithium offers more than 2x the usable power per rated Ah due to dept of discharge. To put it in perspective, just one (1) Micro 12V 320Ah battery replaces the usable energy of almost 7 (6.8) standard golf cart batteries (6V 225Ahr).
Cycle Life
A cycle is the complete charge and discharge of the battery. If you use half the capacity and charge up, its 1/2 cycle. For these batteries if you use a full cycle daily, it will be 8-13.5 years until you realize a 20% capacity loss. This means with the 320Ah, after 3000 – 5000 cycles you would still have up to 256Ah (3.28kWh) of usable power left. The battery can easily have a useful life of more than 10,000 cycles or 25 years in most applications. This is the only battery you will need, which is why we include our 10-year warranty, but you can expect it to run much longer. Our cases are easily accessed to diagnose/replace parts after the warranty ensuring you are never left with a paper weight.
Smart BMS

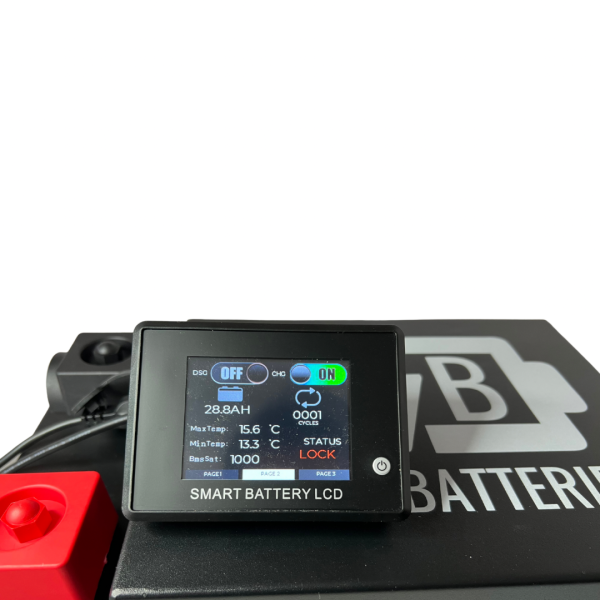

Lithium batteries require a battery management system to ensure proper voltage and temperature cut-offs. Separating our batteries from other lithium batteries is our smart BTBMS. It allows users to set parameters of charging and discharging, monitor real time usage, see available power left, and turn on and off the battery all from a phone. Since you’re able to turn off the battery with one click, you can more safely install, transport and turn off your system. Our optional RB Smart LCD screen also shows values and allows turning off either charge or discharge. Best practice is to always treat the battery as ‘ON” even if turned off. The BTBMS has automatic high/low temp and voltage cut-offs to maximize your battery life. Since the BMS we use is open source, there are many different apps that can monitor the battery & can be purchased in the marketplace easily.
Temperature
LiFePO4 chemistry normally cannot be charged in 0 °C or discharged in -20 °C. Our batteries come with a build-in automatic heating that maintains temperature above 5 °C. Regardless of your battery location and climate, your battery will work. If the battery is turned off via the app or hard switch, the heater is turned off. We suggest to turn off the battery when disconnected and in storage. Our heater uses very little power to keep everything warm but if there are no inputs it can drain the battery (the cut-offs will still apply so not damage will be done).
Amp Rates
Our smart BMS is rated to output 200A continuous with a 400A peak (10 seconds) and charging up to 200A. Recommended charging is 50-100A for highest lifetime of the battery. By paralleling units, you can multiply amperage rates by number of paralleled batteries. Please gauge your wiring accordingly to account for your expected loads.
Safety
The most important aspect to all our batteries is safety. LiFePO4 is one of the safest lithium chemistries and will not catch on fire like other li-ion batteries. There is no venting or required maintenance with these batteries. Storage losses are under 3% per month so you can leave the battery dormant for long periods without issues. Our BTBMS has internal cut-offs for shorting and too high of loads but always fuse your systems as if these features are not in place.
Size/Weight (12.6″ x 7.7″ x 12″ 64lbs)
There is no lighter or smaller battery per kWh. Our batteries are made using the smallest size case possible. The lead acid equivalent would be 6x heavier and larger. Most other lithium batteries are 20-50% heavier and larger footprint. This battery can be oriented however you need to fit in your battery space. On these batteries we use a thick metal casing with removable handles. Our batteries are not IP rated and should not be exposed to rain or water at anytime.
Series/Parallel (4S/4P)
Our Micro 12V 320Ah is capable of up to 4 series and 4 paralleled batteries. For 48V systems, 4x series 12V or 2x series 24V configurations are identical performance so it is up to personal preference which makes the most sense.
Bluetooth App (XiaoXiang Electric)
Alternative Bluetooth Apps
Android App (Overkill Solar)
Apple App (Overkill Solar)
Apple App (XiaoXiang BMS)
Apple App (BMS Tool)
Apple App (Smart BMS Utility)
Android App (Lynac)
Apple App (Lynac)
