Ford Transit Stage 4 Topo 2.O AWD & RWD (2020+) Single Wheel by Van Compass

Van CompassSKU: 7214-LM

SHOCK TUNE: LIGHT/MID - UNDER 8500 LBS
Price:
Sale price$3,575.00 CAD

Description

Van Compass' Stage 4 Topo 2.0 kit represents the pinnacle of performance in suspension upgrades for your 2020-UP Ford Transit AWD. This system pairs the adjustable rear Falcon 3.3 SP2 shocks, with a true 2.0" of lift for improved ground clearance while maintaining factory alignment specifications.

This tuned suspension system will dramatically improve your ride quality and this Topo kit was developed specifically to work around the packaging and front CV shaft constraints presented by the 2020 AWD Transit platform.

This kit is compatible with AWD Transit models from 2020-present, and fits all single rear wheel vans. The Stage 4 kit is designed specifically for built out camper vans or work vehicles that run at or near GVWR all the time. 8500 lb vehicle weight and up.

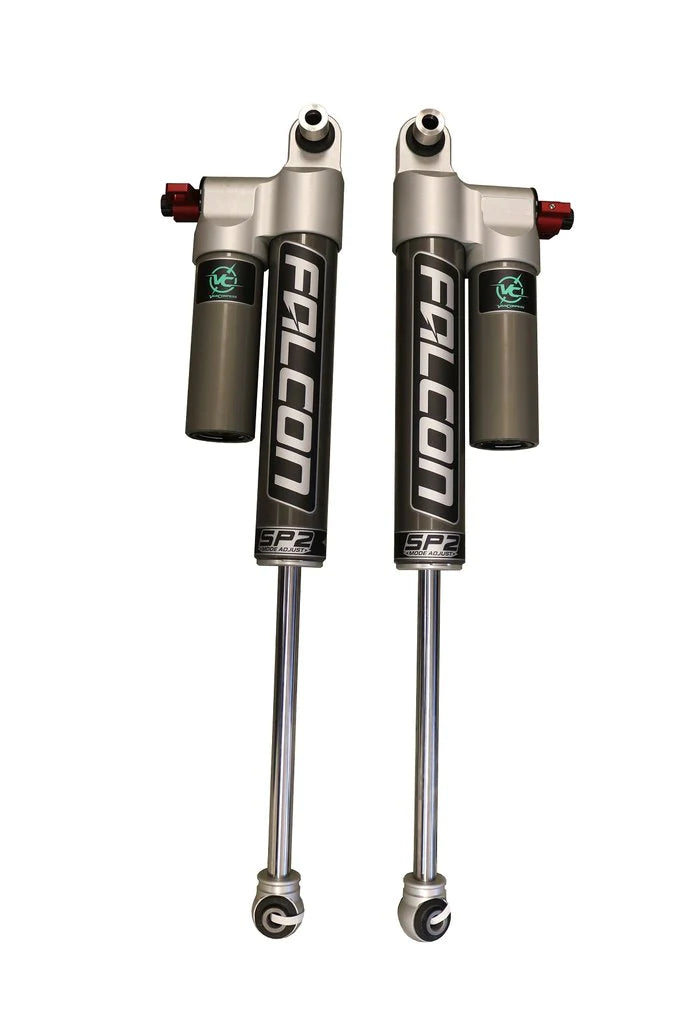

The centre piece of the Stage 4 kit are the Falcon 3.3 SP2 Adjustable rear shocks, which are tuned to Van Compass' specifications. These upgraded dampers feature a 2.35" piston that will smooth out the harshness experienced on washboard roads and sharp, abrupt impacts. An intuitive, easy to adjust knob allows the user to easily fine tune their ride based on load, terrain, and driver preference. The bounce experienced over large bumps is reduced as well as the side to side sway or ‚jostling over uneven surfaces. The Rear Shock Relocation Brackets allow for increased ground clearance and move the vulnerable shaft of your shock out of harm's way.

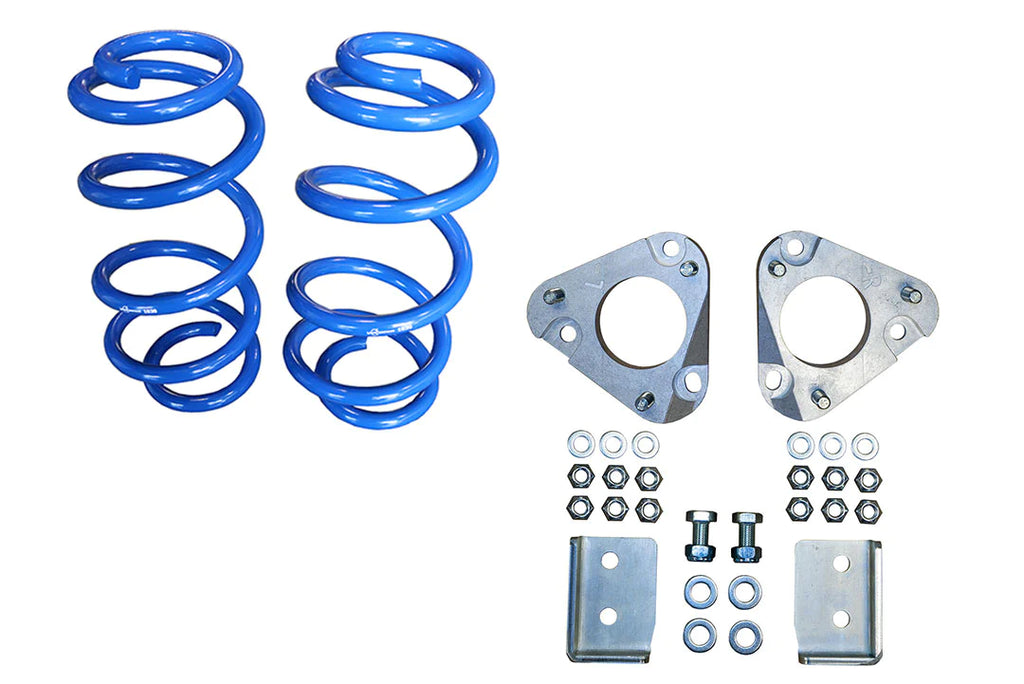

The Topo Front Lift Kit combines a precision engineered 0.75" lift camber correction plate, with a tuned coil spring. By engineering the spring length and rate to Van Compass' specifications, the tuned spring nets approximately 1.25" of lift with a corresponding increase in compression travel.

The B6 strut is not included with AWD specific kits, it can bind the CV and cause premature boot failure.

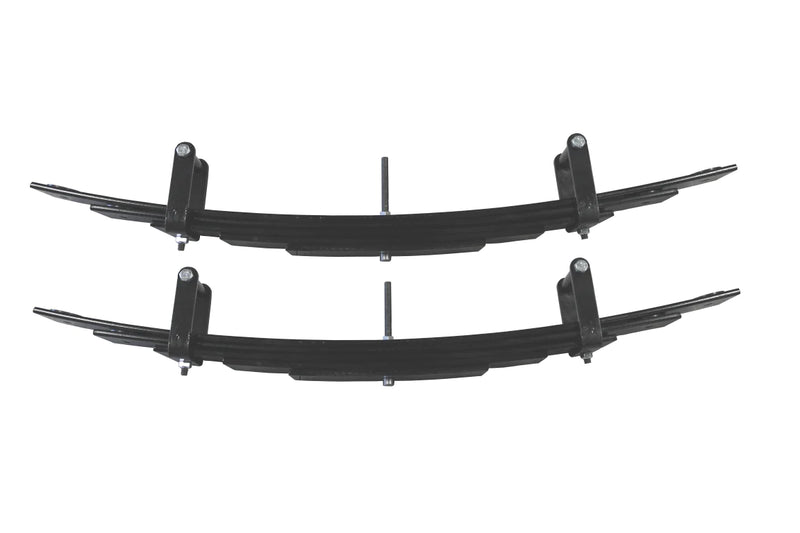

Rear lift is accomplished by our proven 5 leaf mini spring pack. This 5 leaf mini pack works in conjunction with the factory leaf pack to provide a 10-15% spring rate increase in the rear while lifting the back of the van anywhere from 2.0" to 2.5" depending on vehicle weight. Friction reducing tips on our leaves ensure a smooth, quiet ride.

We recommend running a maximum tire size of 265/75/16 with this suspension package. This tire size will require some slight trimming of the inner pinch seam, and depending on tire tread profile, some rubbing of the subframe is possible at full steering lock.

For more detailed information on this suspension package, read through the detailed instructions below as well as our AWD development videos regarding the R&D process of developing the Topo 2.0 lift kit. With this suspension package installed, the Ford Transit is an absolute joy to drive on all road conditions.

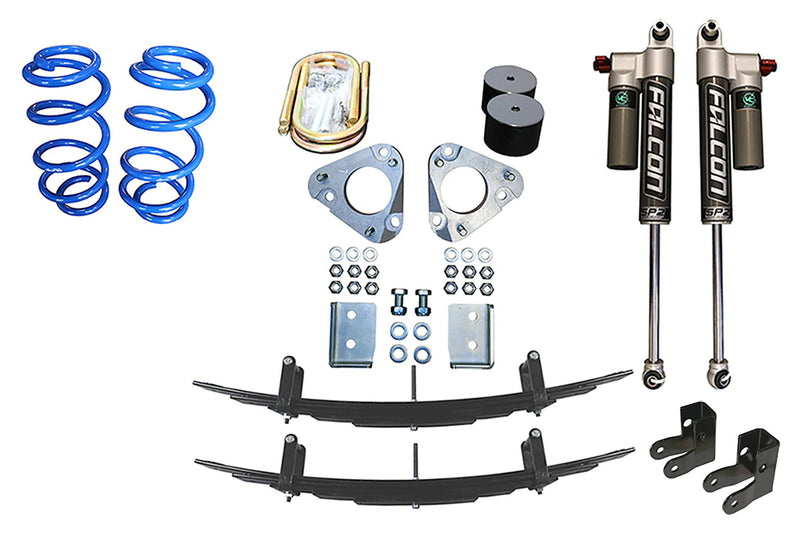

The Stage 4 Topo 2.0 package includes:

  • Topo 2.0 Front Lift Kit
  • Tuned Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks (1 pair)
  • Rear 5-Leaf Mini-Spring Pack and Bump Stop Spacers
  • High Clearance Rear Shock Brackets
  •


    2013+ Transit Topo Front Kit Installation Instructions
    2013+ Transit Rear Falcon 3.3 Installation Instructions
    2013+ Transit High Clearance Shock Brackets Installation Instructions
    2013+ Transit Rear Leaf Pack Installation Instructions
    Falcon 3.3 Shock Settings Guide

    Recommended Shop Labor Time: 8.25 Hours

    Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.

    Stage Guide: AWD Transit
    Tire Guide: Transit
    Van Compass has prepared this guide to help with tire choices for your van. Generally, the largest compatible diameter and widths are listed, other sizes may fit. Actual size varies by manufacturer, wheel choice, and inflation pressure. Tire size selection will vary by manufacturer and tread pattern, and tires with more aggressive tread or aggressive sidewalls may have more fitment issues. Specific trimming instructions are noted in most of our lift kit's instructions. All Transits will rub on the front subframe at full lock with a 265/75R16 tire, and most will require a 3/16" wheel spacer.
    Van Compass and Nirvana Outfitters is not responsible for fitment issues.

    Price is FOB Salmon Arm

    Please allow 4 weeks
