Ford Transit Stage 3 Topo 2.O AWD & RWD (2020+) Single Rear Wheel by Van Compass


SHOCK TUNE: LIGHT - UNDER 8000 LBS
Price:
Sale price$2,738.00 CAD

Description

Improve the ride quality and stance of your 2020+ Ford Transit AWD with the Stage 3 Topo 2.0 package. This system achieves a true 2.0" of lift for improved ground clearance while maintaining factory alignment specifications.

This tuned suspension system will dramatically improve your ride quality and the Van Compass Topo kit was developed specifically to work around the packaging and front CV shaft constraints presented by the 2020 AWD Transit platform.

This kit is compatible with AWD Transit models from 2020-present, and fits all single rear wheel vans. The Stage 3 kit is designed specifically for built out camper vans or work vehicles that run at or near GVWR all the time. 8500 lb vehicle weight and up.

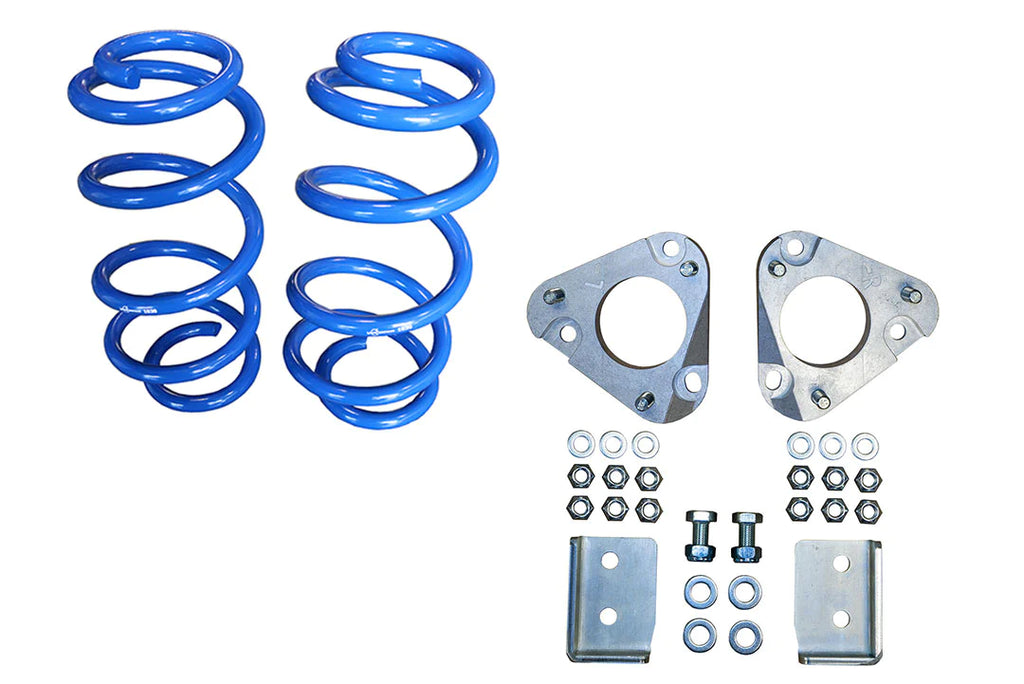

The Topo Front Lift Kit combines a precision engineered 0.75" lift camber correction plate, with a tuned coil spring. By engineering the spring length and rate to Van Compass' specifications, their tuned spring nets approximately 1.25" of lift with a corresponding increase in compression travel.

The B6 strut is not included with AWD specific kits, it can bind the CV and cause premature boot failure.

Rear lift is accomplished by our proven 5 leaf mini spring pack. This 5 leaf mini pack works in conjunction with the factory leaf pack to provide a 10-15% spring rate increase in the rear while lifting the back of the van anywhere from 2.0" to 2.5" depending on vehicle weight. Friction reducing tips on our leaves ensure a smooth, quiet ride.

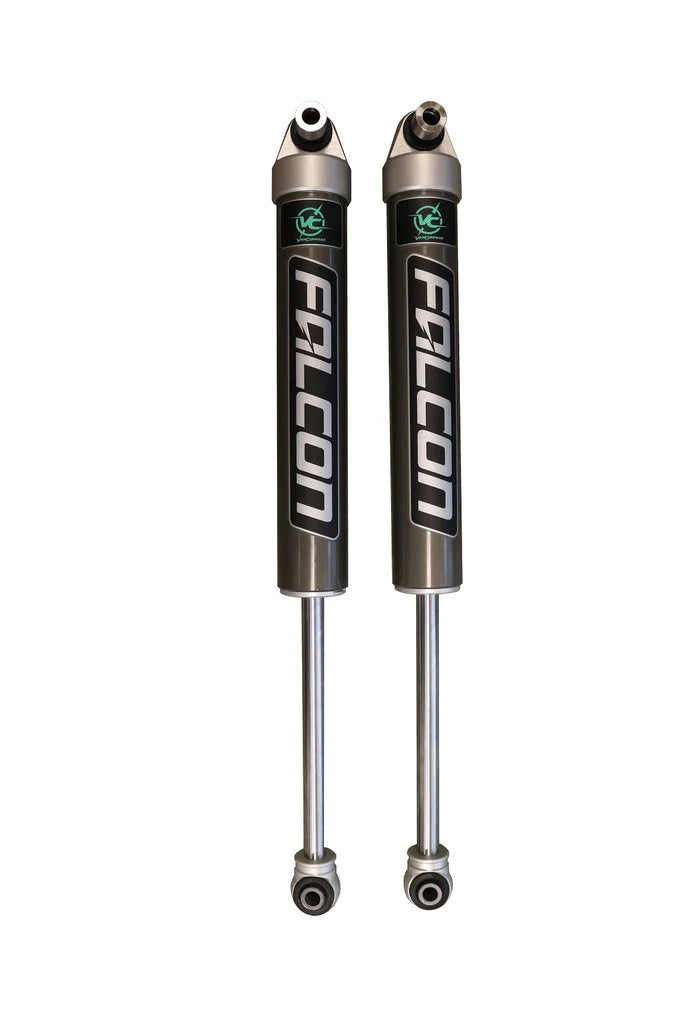

Rear Falcon 2.1 Monotube shocks are tuned to Van Compass' specifications. These upgraded dampers feature a 2.35" piston that will smooth out the harshness experienced on washboard roads and sharp, abrupt impacts. The bounce experienced over large bumps is reduced as well as the side to side sway or jostling over uneven surfaces. Our Rear Shock Relocation Brackets allow for increased ground clearance and move the vulnerable shaft of your shock out of harm's way.

Van Compass recommends running a maximum tire size of 265/75/16 with this suspension package. This tire size will require some slight trimming of the inner pinch seam, and depending on tire tread profile, some rubbing of the subframe is possible at full steering lock.

For more detailed information on this suspension package, read through the detailed instructions below as well as Van Compass' AWD development videos regarding the R&D process of developing the Topo 2.0 lift kit. With this suspension package installed, the Ford Transit is an absolute joy to drive on all road conditions.

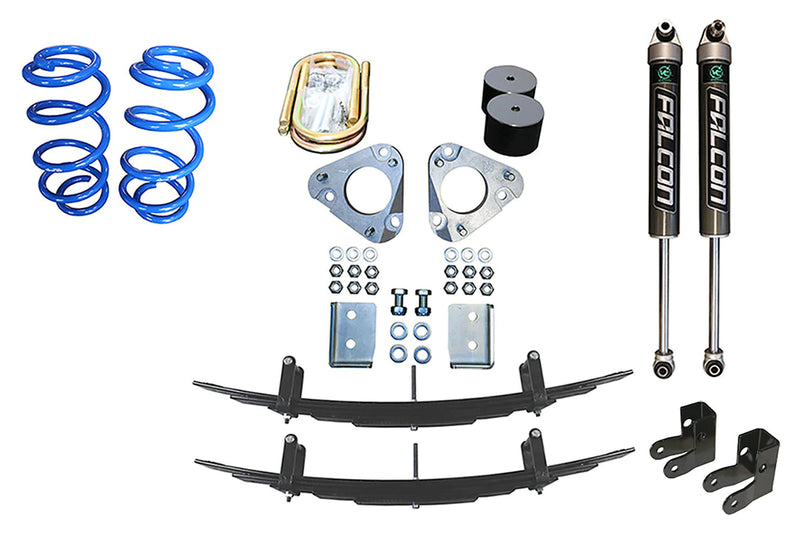

The Stage 3 Topo 2.0 package includes:

  • Topo 2.0 Front Lift Kit
  • Tuned Falcon 2.1 Monotube Rear Shocks (1 pair)
  • Rear 5-Leaf Mini-Spring Pack and Bump Stop Spacers
  • High Clearance Rear Shock Bracket




  •

    2013+ Transit Topo Front Kit Installation Instructions
    2013+ Transit Rear Leaf Pack Installation Instructions
    2013+ Transit Rear Falcon 2.1 Installation Instructions
    2013+ Transit High Clearance Shock Brackets Installation Instructions

    Recommended Shop Labor Time: 8.25 Hours

    Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.

    Stage Guide: AWD Transit

    Transit Tire Fitment Guide

    Van Compass prepared this guide to help with tire choices for your van. Generally, the largest compatible diameter and widths are listed, other sizes may fit. Actual size varies by manufacturer, wheel choice, and inflation pressure. Tire size selection will vary by manufacturer and tread pattern, and tires with more aggressive tread or aggressive sidewalls may have more fitment issues. Specific trimming instructions are noted in most of our lift kit's instructions. All Transits will rub on the front subframe at full lock with a 265/75R16 tire, and most will require a 3/16" wheel spacer.

    Van Compass / Nirvana Outfitters are not responsible for fitment issues.

    This calculator is one of the best we've found, and very helpful for comparisons between different tire sizes. Actual size varies by manufacturer, wheel choice, and inflation pressure. Always consult your tire shop before purchasing wheels or tires.


    Price is FOB Salmon Arm

    Please allow 4 weeks
